Premium Electronics Upgrade

The difference is often found in the details you cannot see.

At Fret & Grain, we look beyond the obvious. From the smallest adjustment to a complete restoration, every guitar is carefully examined and thoughtfully refined. Our approach is simple: precise work, honest craftsmanship, and no shortcuts.

IMPORTANT COMPATIBILITY NOTE

For the Free-Way 6-Way switching system to function correctly, the humbuckers must have 4-conductor wiring and the correct magnetic polarity configuration.

The two humbuckers must have matching magnetic orientation:

NS – NS
or
SN – SN

This ensures the intended pickup combinations maintain the correct phase relationship when using the additional coil combinations.

Pickup compatibility and magnetic polarity should be checked before installation.

Please contact us for more information and compatibility assessment.

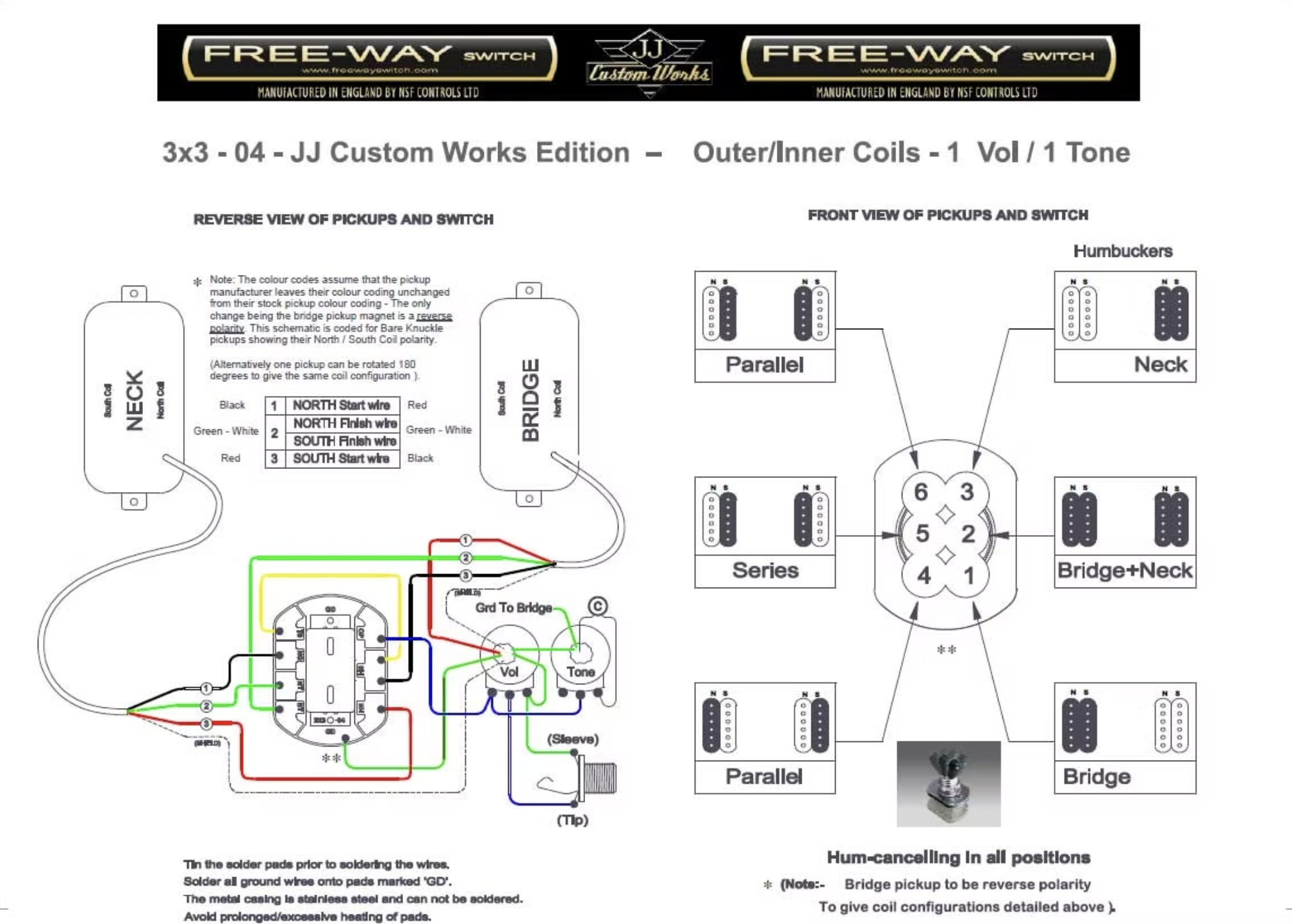

LES PAUL + FREE-WAY 6-WAY

Upgrade your PRS or Les Paul-style guitar with a premium Free-Way 6-way switching system, giving you the classic humbucker tones plus additional coil combinations for greater tonal versatility.

INCLUDES:

CTS 550K Volume Pot × 2
CTS 550K Tone Pot × 2
Treble Bleed Circuit x 2
Bare Knuckle 0.022µF Mineral Oil Tone Capacitor × 2
Free-Way 3X3-04 6-Way Toggle Switch x 1
Switchcraft Mono Output Jack x 1
22 AWG 19-Strand Silver-Plated Copper Core Teflon Wire
Premium Solder & Flux

6-WAY PICKUP SELECTION

Position 1: Neck humbucker

Position 2: Neck + Bridge humbuckers
Classic full humbucker combination

Position 3: Bridge humbucker

Position 4: Neck pickup inner coils in parallel + Bridge pickup inner coils in parallel
Clearer, brighter and more articulate

Position 5: Neck + Bridge inner coils in series
Thicker and more powerful single-coil-style combination

Position 6: Neck + Bridge outer coils in parallel
Open, bright and articulate tone

SGD 530

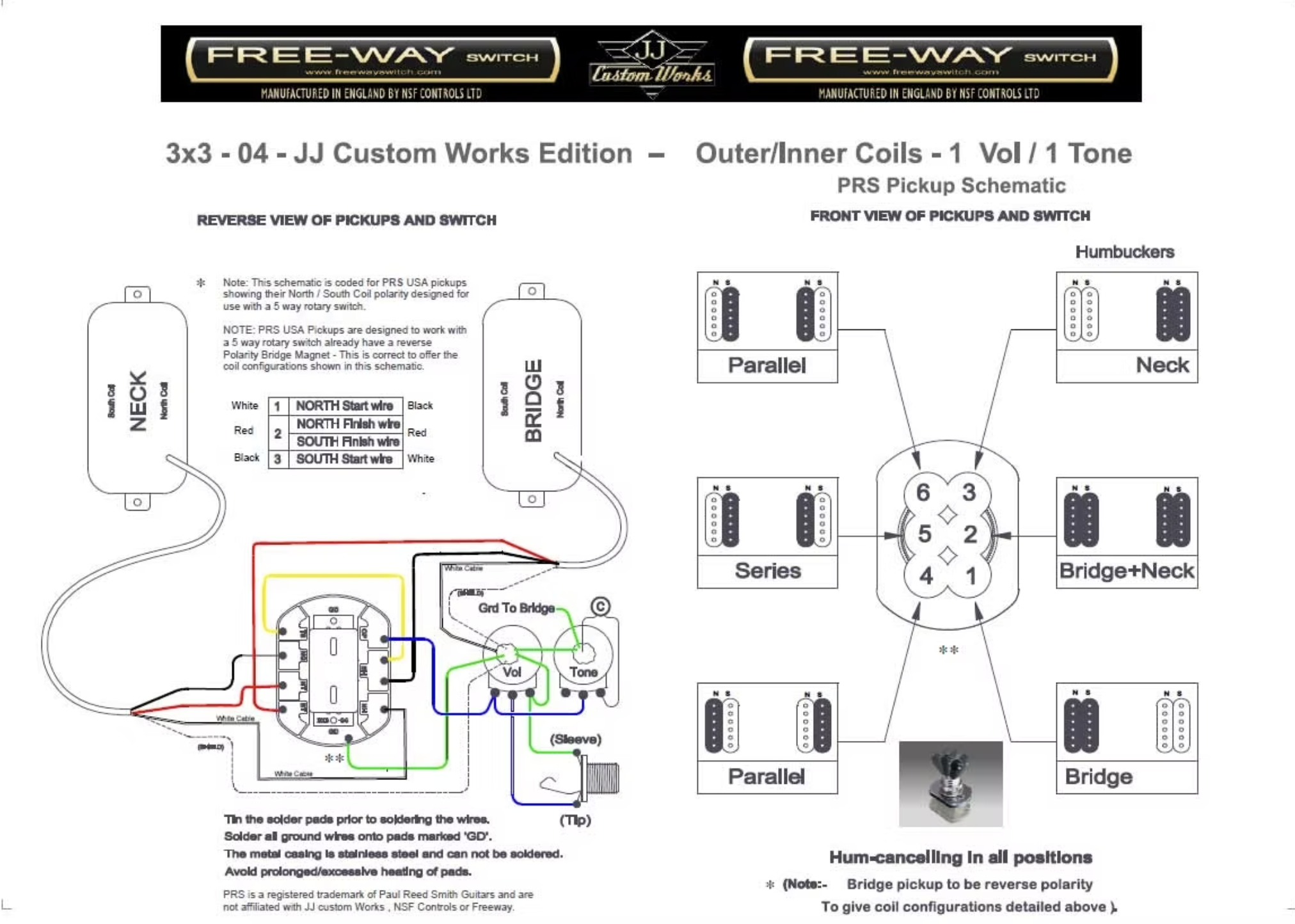

PRS + FREE-WAY 6-WAY
