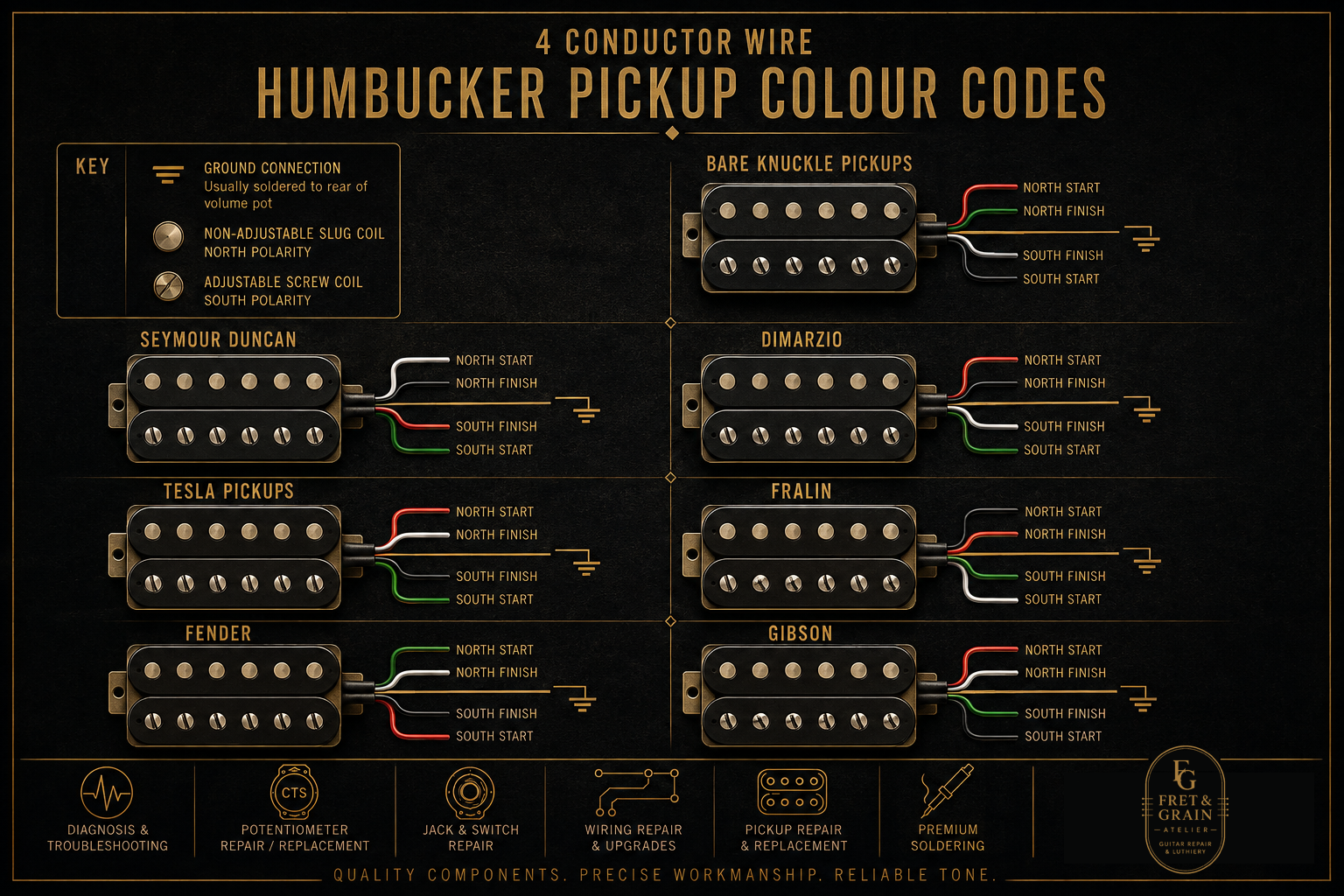

Chart showing color codes for humbucker pickup wiring on electric guitars, including models like Seymour Duncan, Tesla, Fender, Dimarzio, Fralin, Gibson, with wiring guides for start, finish, and ground connections.

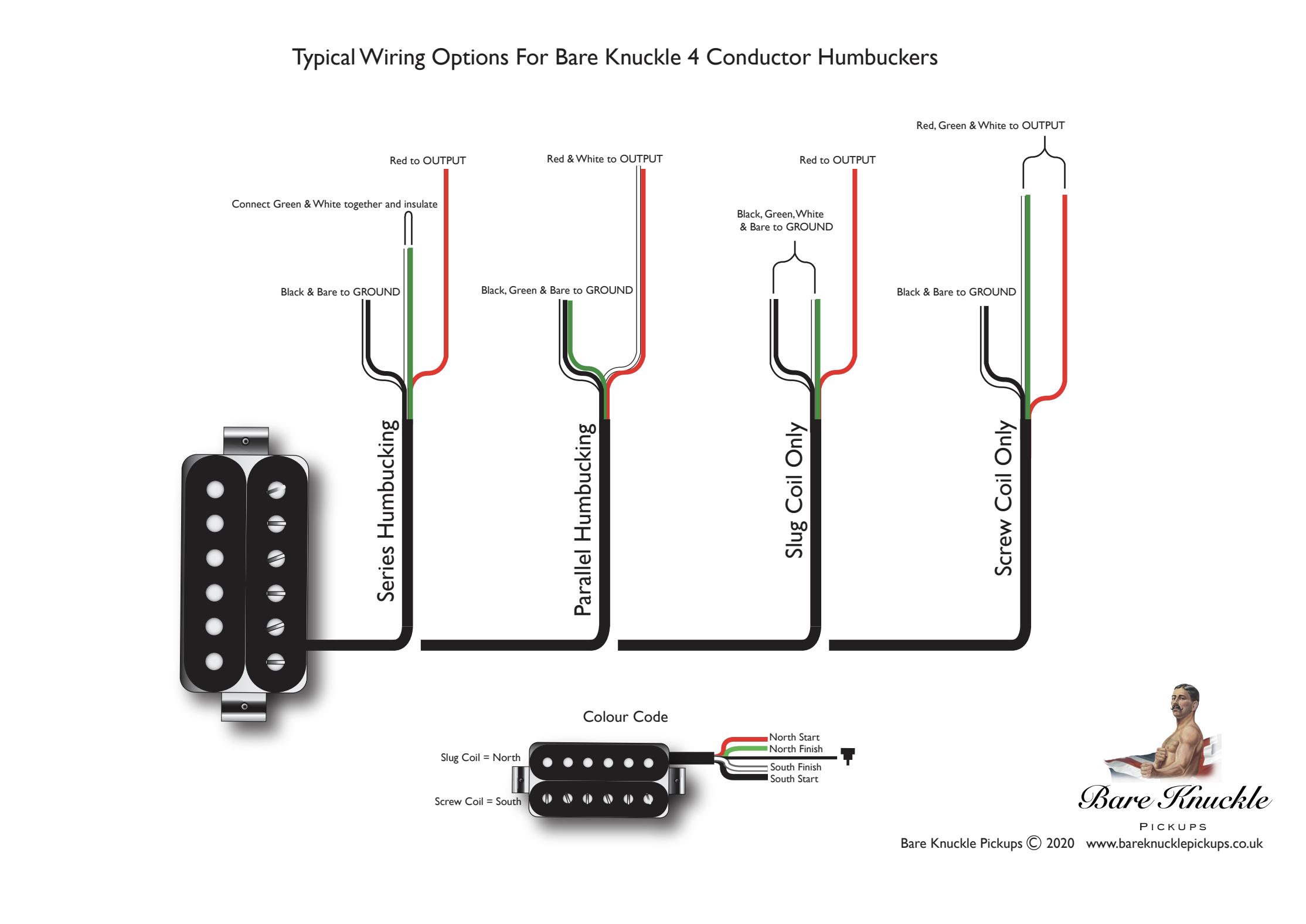

Diagram showing traditional wiring options for Bare Knuckle 4 conductor humbuckers, including color-coded wiring schemes and instructions for connecting the wires.

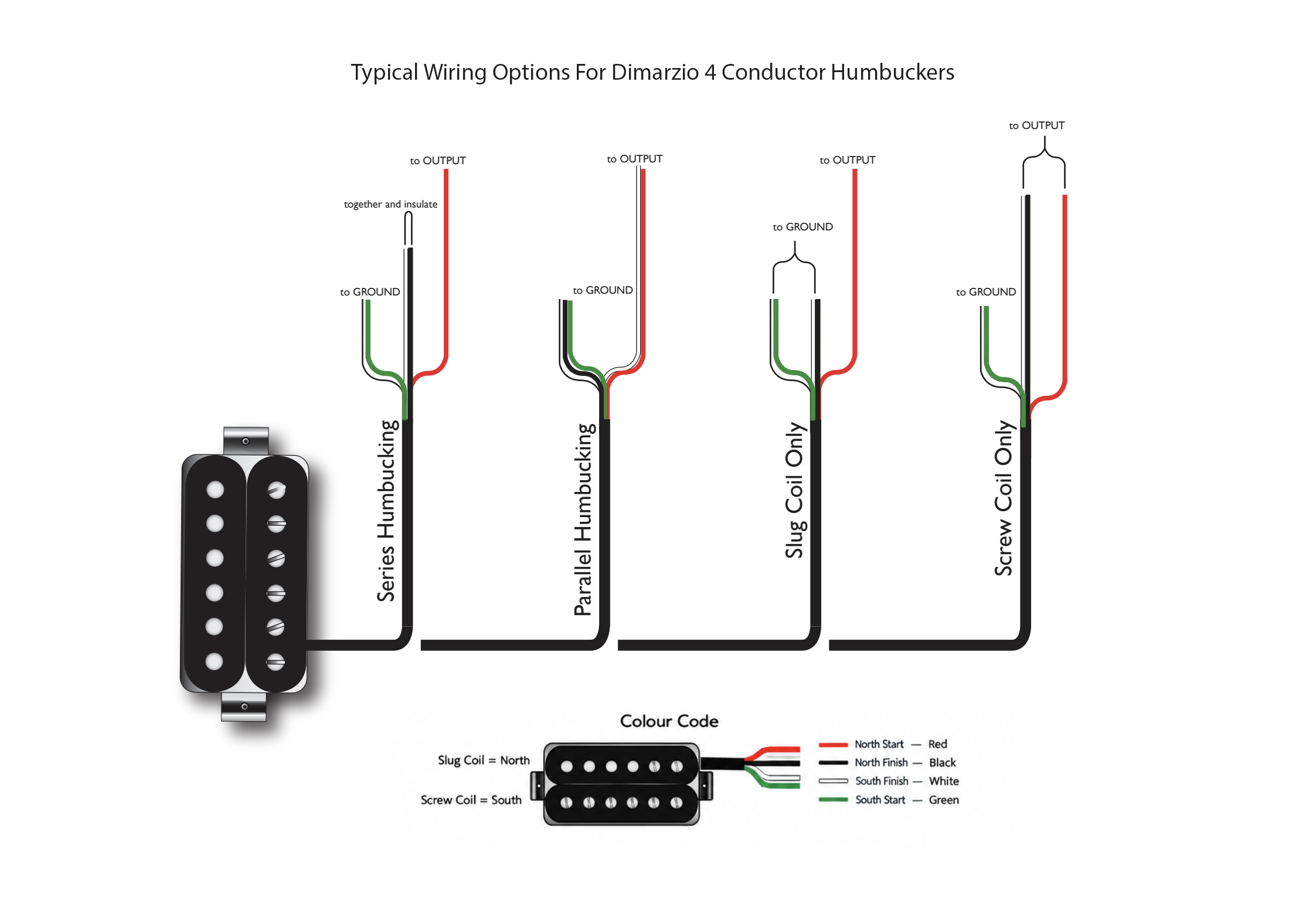

Diagram showing typical wiring options for Dimarzio 4 conductor humbuckers, including color codes and wiring configurations for series humbucking, parallel humbucking, coil only, and wiring with a switch, with color-coded wires and labels.
