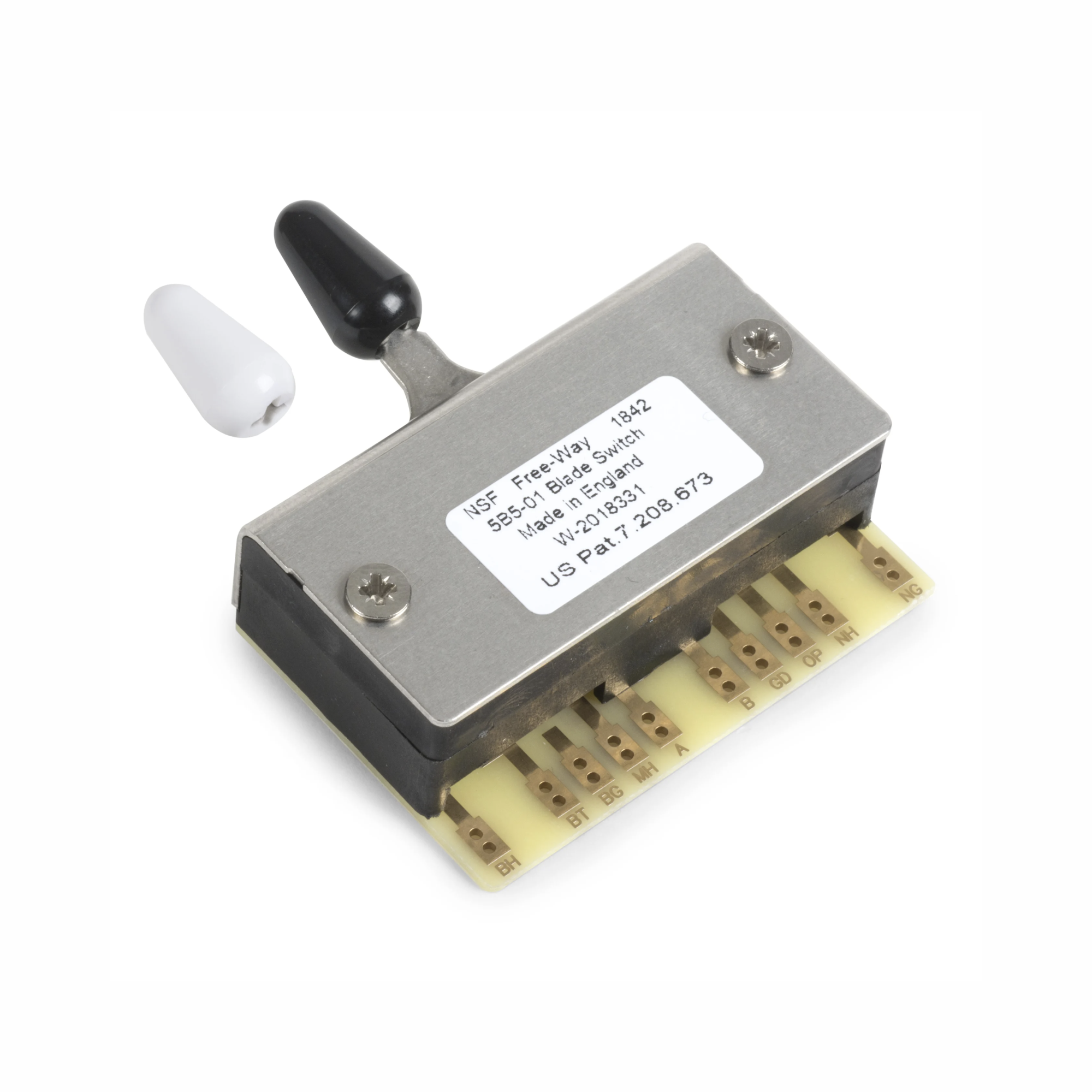

The Free-Way 10-Way Blade Switch Version 1 is a highly versatile upgrade for SSS and HSS guitars, offering a total of 10 different pickup selection options from a single blade switch.
At first glance, it operates much like a conventional 5-way selector. However, the Free-Way switch features an additional switching bank, allowing access to a second set of five pickup combinations without the need for extra mini switches or push-pull pots.
The switch provides 10 selectable positions, giving you access to traditional pickup selections as well as additional series, parallel or combined pickup configurations, depending on the wiring scheme used.This greatly expands the tonal versatility of your guitar while retaining an intuitive and familiar blade-switch operation.
10 pickup selection options
Designed for SSS and HSS configurations
Familiar blade-switch format
Two banks of five switching positions
Access additional pickup combinations without extra switches or push-pull pots
Intuitive operation
Superb build quality
Ideal for guitar upgrades and custom wiring projects
Check out the available wiring possibilities:

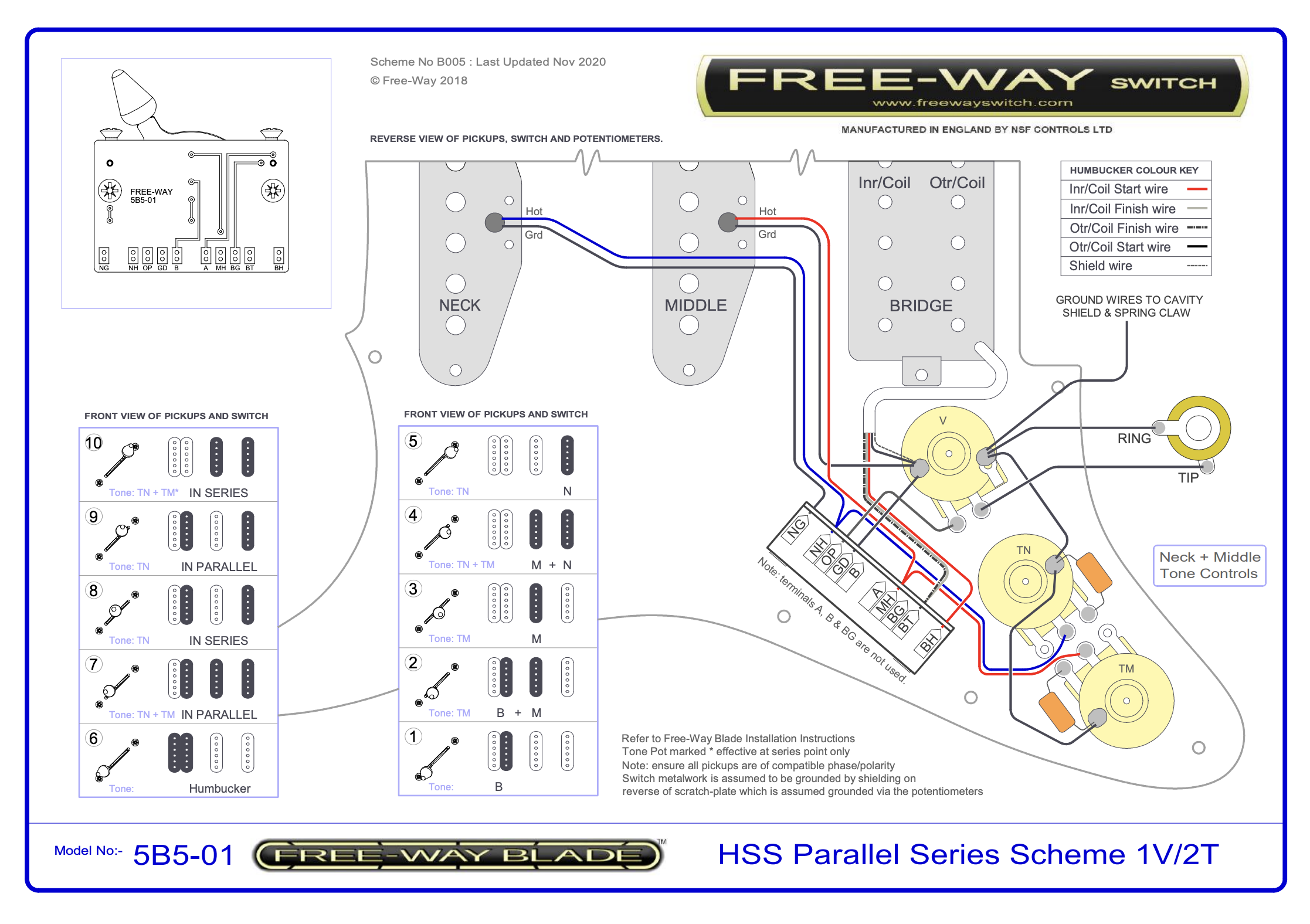

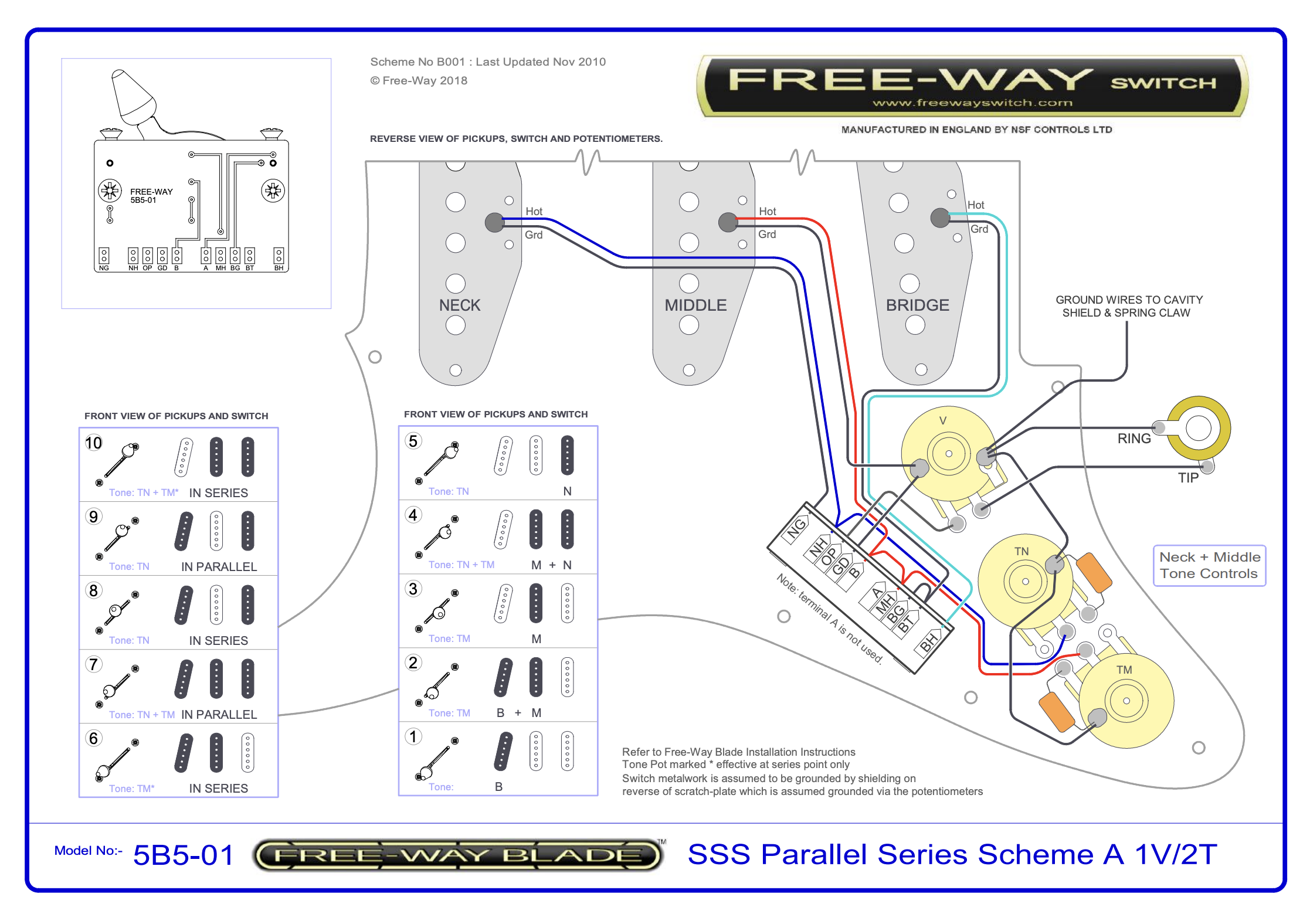

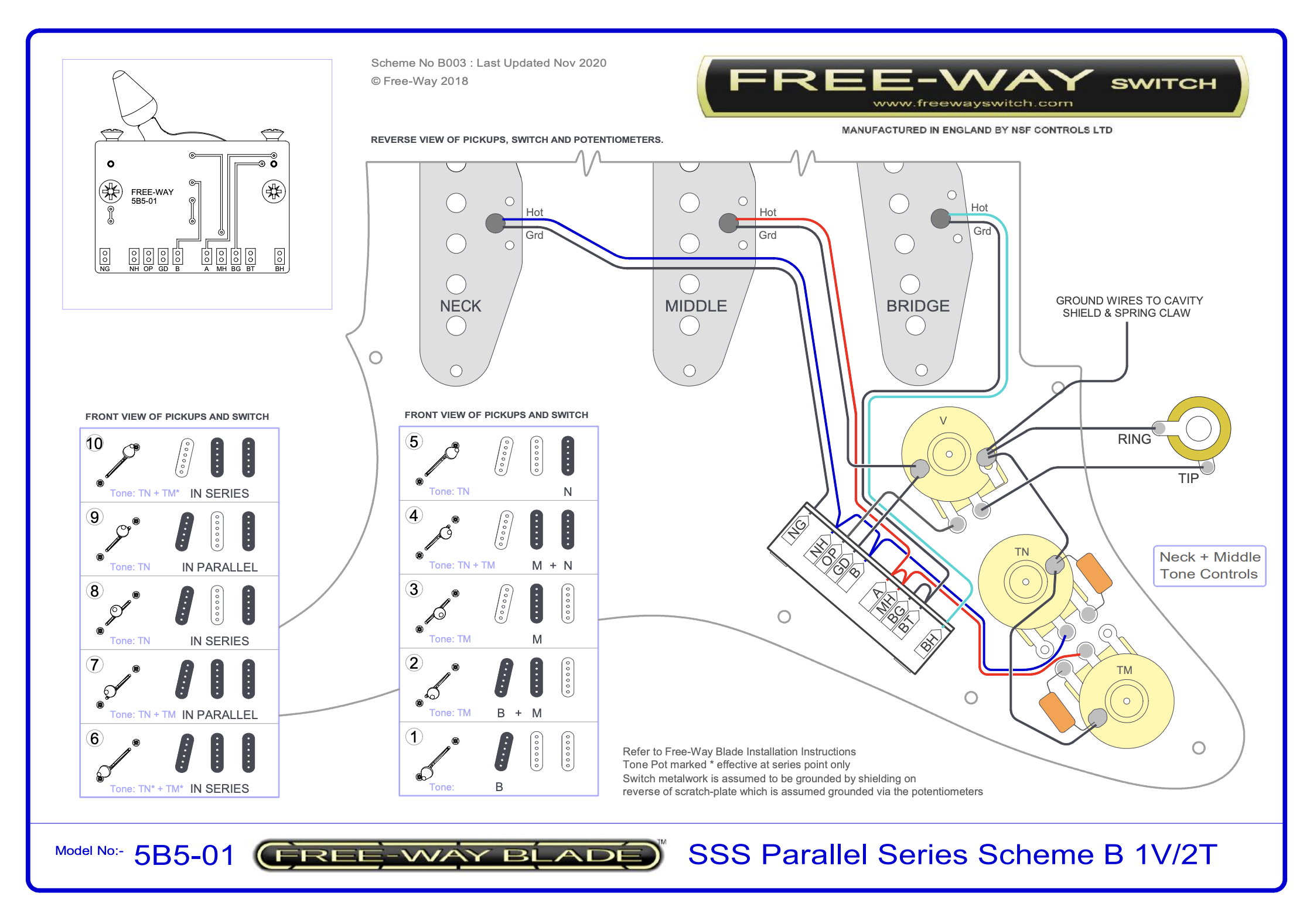

View the Free-Way 10-Way Blade Switch wiring diagram
Made in England
