FREE-WAY JJ CUSTOM WORKS 3X3 NO.04 6-WAY TOGGLE SWITCH

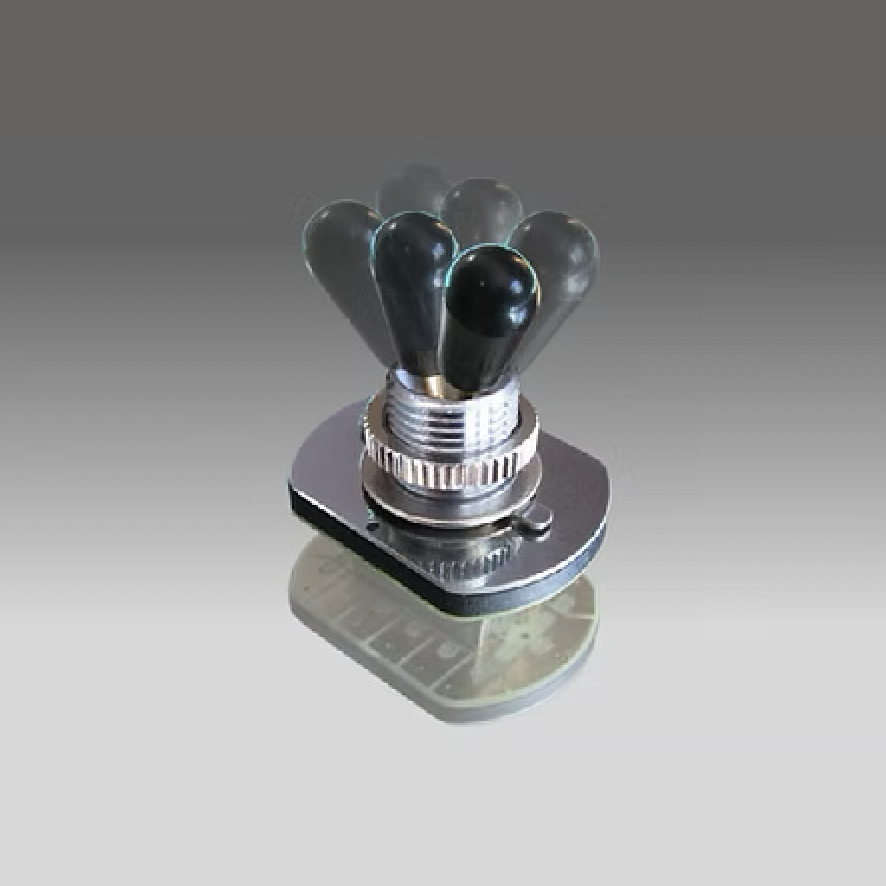

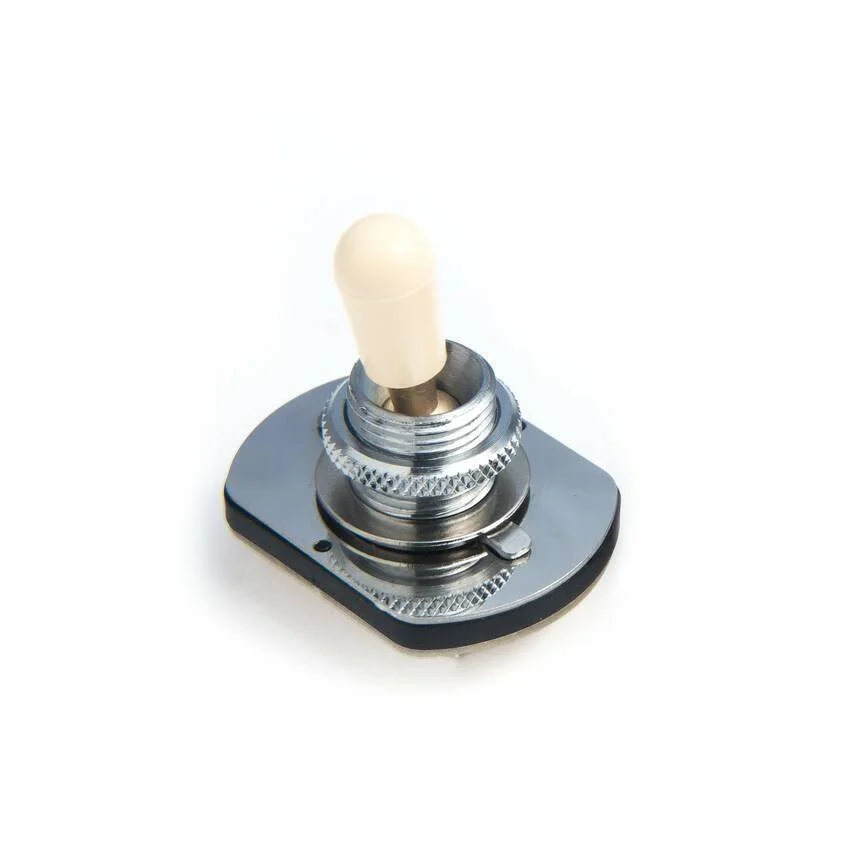

The Free-Way JJ Custom Works 3x3 No.04 Toggle Switch is a highly versatile 6-way pickup selector designed for guitars fitted with a pair of humbuckers.
Based around the familiar 3-way toggle switch format, it fits as a direct replacement for a standard 3-way toggle while significantly expanding the range of available pickup combinations. The innovative 3x3 switching design provides both familiar full-humbucker sounds and additional coil combinations without the need for extra mini switches or push-pull pots.

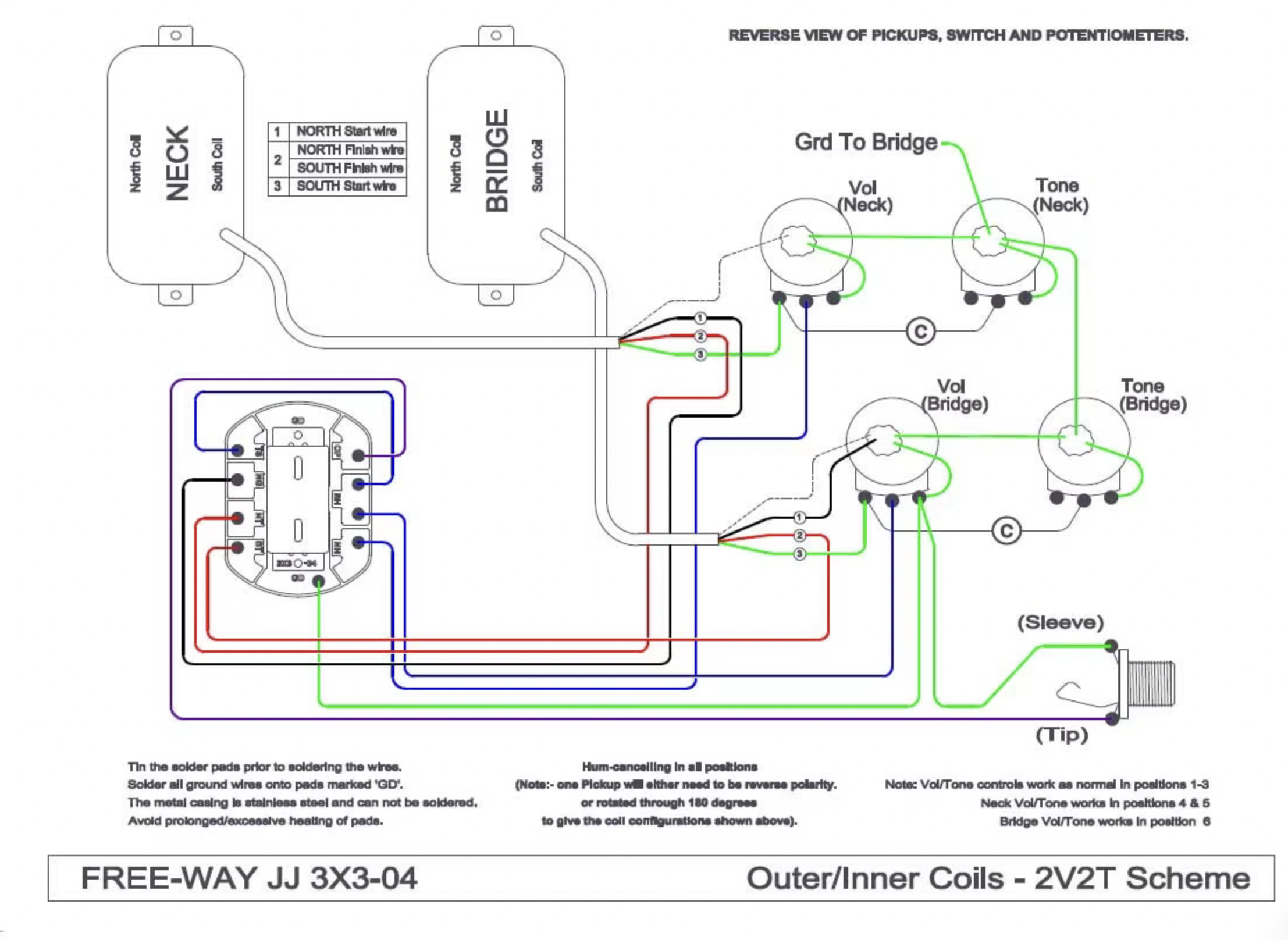

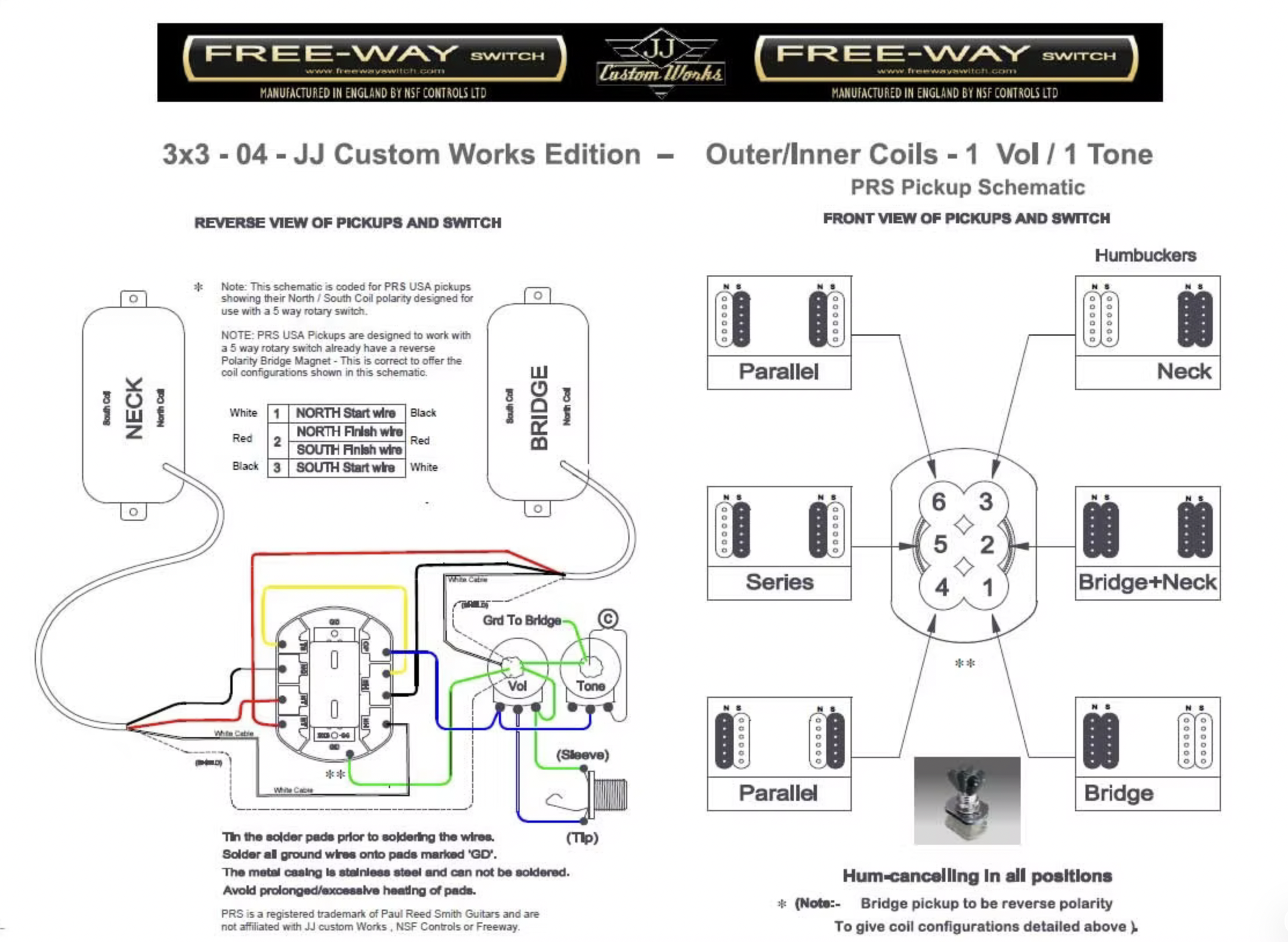

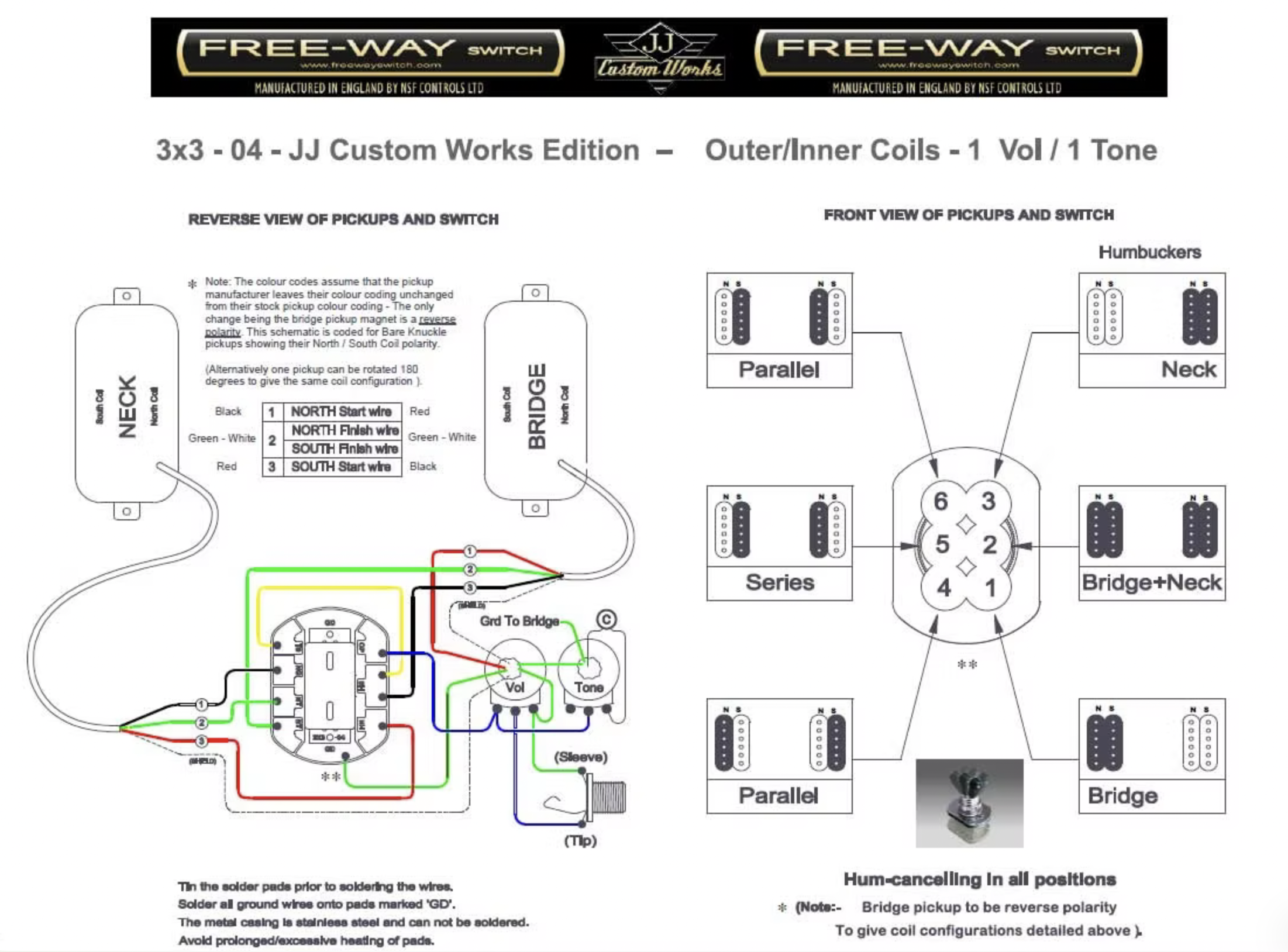

6 Pickup Combinations
The switch provides access to:
Bridge Humbucker
Bridge + Neck Humbuckers
Neck Humbucker
Outer Coils in Parallel
Inner Coils in Series
Inner Coils in Parallel
This combination of full humbuckers, parallel coil selections and a series-connected coil combination delivers a wide range of tones from a conventional dual-humbucker guitar.
Key Features
6-way switching from a single toggle switch
Designed for HH dual-humbucker configurations
Retrofitting for standard 3-way toggle switch mounting
Retains the familiar toggle switch control layout
Access to both full humbucker and single-coil-style combinations
Inner and outer coil selections in parallel
Inner coils connected in series for a powerful combined tone
No additional mini switches or push-pull pots required
Includes switch tip
Pickup Requirements
For the additional coil combinations to work correctly, both humbuckers must feature 4-conductor wiring.
The magnet polarity of either the bridge or neck humbucker must also be reversed to ensure the appropriate coil combinations operate correctly. When ordering new compatible humbuckers with F&G and Bare Knuckle, please add a note in the Notes / Delivery Instructions box requesting a magnet flip for use with the Free-Way JJ Custom Works 3x3 No.04 switch.
The Free-Way JJ Custom Works 3x3 No.04 is an excellent upgrade for players who want to unlock a much wider range of tones from an HH guitar while retaining the clean appearance and intuitive operation of a traditional 3-way toggle switch.
Made in England
